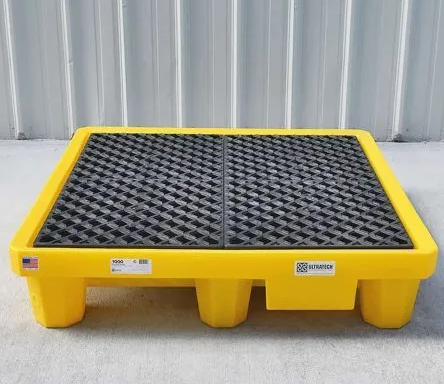

Ultra-Spill Pallet® Standard Model
Spill containment pallets protect against chemical spills or leaks
The Ultra-Spill Pallet is specially constructed to support heavy loads and designed to be easily used and transported. Its 100% polyethylene (LLDPE) construction makes it compatible with a wide range of chemicals, while its low-rise walls allow easier accessibility for pouring.
It helps meet spill containment regulations for up to four drums, and comply with SPCC and EPA spill containment requirements.
Product Highlights
- High load capacity: 6,000 lbs. for Ultra-Spill Pallet P4, 3,000 lbs. for Ultra-Spill Pallet P2.
- Bright, safety yellow sidewalls are translucent, offering convenient visual leak detection.
- 100% polyethylene (LLDPE) construction - compatible with a broad range of chemicals, including acids and corrosives.
-
The Cross of Life
The Power in UltraTech’s Spill Pallets
Virtually all spill pallets made by various manufacturers have a design flaw: they make the top of the spill pallet open with a grate on top of it. By having an open top, much of the weight from the drums on top, transfers to the sidewalls of the spill pallet. Since polyethylene (LLDPE) material (what plastic spill pallets are made out of) will creep when under stress, the sidewalls slowly buckle over many months, based on the load weight of the drums.
With some of the poorer designs, UltraTech has seen the sidewalls creep out until they are wider than the grates causing the grates fall into the spill pallet. Now you are faced with:
- The best case scenario: You have to spend more money and buy a new spill pallet.
- The worst case scenario: Your drums topple over and you’ve got a hazmat spill on your hands.
UltraTech has a solution to this design problem. Most of our spill pallet and IBC spill pallet designs use what we term “the cross of life”
The cross of polyethylene (LLDPE) plastic is molded across the top of the spill pallet and connects the four sidewalls together. The more weight that is placed on the top of the grates, the more weight that is applied to the cross of life which in turn helps pull the sidewalls in, rather than allow them to sag out.
The more weight, the greater the protection for the sidewalls. The overall uniform distributed load weight should not be exceeded in any case.

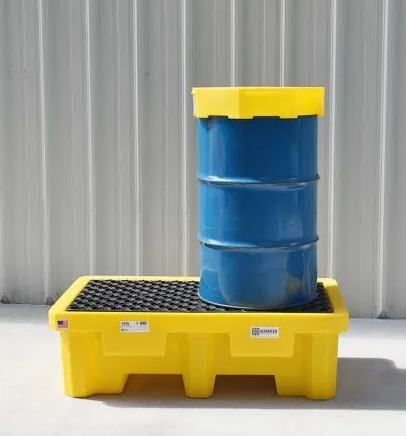

2 Drum information:
Dimensions inches: 53 x 29 x 16.5
Grating Surface inches: 48 x 24
Weight Capacity UDL lbs.: 3000
Containment Capacity gal: 66

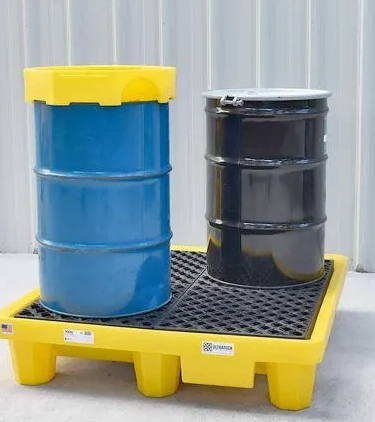

4 Drum information:
Dimension inches: 53 x 53 x 11.8
Grating Surface inches: 48 x 48
Weight Capacity UDL lbs.: 6000
Containment Capacity gal: 66
