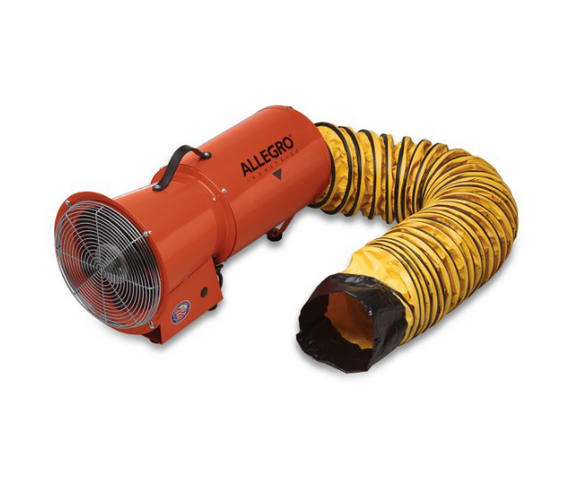

Allegro 8" Axial AC Metal Blower with Canister: A.C. Electric 1/3 HP - Please Choose Length of Ducting
Engineered for convenience, this 8” axial blower is an all-in-one ventilation system. The design allows ducting to collapse into a built-in canister for easy storage. The unit can also be stored vertically to use a minimum amount of space. Includes blower, built-in storage canister and 15 or 25 feet of ducting. Certified to CSA STD C22.2 No 113. Air delivery certified CEESI.
8" Axial AC Blower with Canister and 15’ Ducting Features:
| Construction | Motor | Fan | Ducting |
| Epoxy powder coated in “safety” orange | HP 1/3 HP | Glass reinforced polypropylene (PPG) six blade fan with aluminum hub | Retractable, non-collapsible design |
| Flange on intake side (for optional Inlet adapter) | Certifications: UL Recognized, CSA Certified | Moving fan mounted 1 5/8” (4.12cm) from grill for safety, 5/16” (.79cm) grill gap | Single-ply, PVC coated, vinyl and polyester materials, temp. resistant up to 180°F (82.2°C) |
| 20 Gauge cold rolled steel housing with welded motor mount construction | Voltage/Hz: 120V AC, 60Hz Single Phase | Yellow color with black weather-strip and integrated nylon straps | |
| Bottom panel enclosed to protect electrical components | RPM: 3200 | Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs | |
| Glass reinforced Polypropylene (PPG) six blade fan with aluminum hub | Current Draw: 3.0A | ||
| Steel/chrome plated grill | Cord: 6’ (1.82m) AWG 16/3 SJTW 105C 300V neoprene medium duty | ||
| Carry handle made of 3-ply rubber belting | Switch/Plug: Inline ON/OFF, integrated on cord, NEMA 5-15P 125V | ||
| Equipped with five (5) rubber feet |
8" Axial AC Blower with Canister and 25’ Ducting Features:
| Construction | Motor | Fan | Ducting |
| Epoxy powder coated in “safety orange” | HP 1/3 HP | Glass reinforced polypropylene (PPG) six blade fan with aluminum hub | Retractable, non-collapsible design |
| Flange on intake side for optional inlet adapter | Certifications: UL Recognized, CSA Certified | Moving fan mounted 1 5/8” (4.12cm) from grill for safety, 5/16” (.79cm) grill gap | Single-ply, PVC coated, vinyl and polyester materials, temp. resistant up to 180°F (82.2°C) |
| 18 gauge cold rolled steel housing | Voltage/Hz: 120V AC, 60Hz Single Phase | Yellow color with black weather-strip and integrated nylon straps | |
| 14 gauge steel enclosed panel to protect electrical components | RPM: 3200 | Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs | |
| Welded motor mount construction | Current Draw: 3.0A | ||
| Steel/chrome plated grill | Cord: 6’ (1.82m) AWG 16/3 SJTW 105C 300V neoprene medium duty | ||
| Handle made of 3-ply rubber belting and equipped with 4 feet | Switch/Plug: Inline ON/OFF, integrated on cord, NEMA 5-15P 125V |
